Common Lisp GDSII Library
Download
github
Dependency: ieee-floats
Support
github pull request
GDSII Records
GDSII format
(defstruct propvalue ascii)
(defstruct propattr i)
(defstruct datatype i)
(defstruct pathtype i)
(defstruct texttype i)
(defstruct boxtype i)
(defstruct width i)
(defstruct strng ascii)
(defstruct layer i)
(defstruct sname ascii)
(defstruct strans uvec)
(defstruct colrow uvec)
(defstruct presentation uvec)
(defstruct angle r64)
(defstruct mag r64)
(defstruct xy ivec)
(defstruct box
layer
strans angle xy
boxtype
propattr propvalue)
(defstruct text
layer strng
strans angle xy mag
texttype presentation
propattr propvalue)
(defstruct asref
sname
strans angle xy colrow
propattr propvalue)
(defstruct sref
sname
strans angle xy
propattr propvalue)
(defstruct path
layer
strans angle xy width
datatype pathtype
propattr propvalue)
(defstruct boundary
layer
strans angle xy
(datatype (make-datatype :i 0))
propattr propvalue)
(defstruct timestamp
(year (nth 0 (cdddr(reverse(multiple-value-list(decode-universal-time(get-universal-time)))))))
(month (nth 1 (cdddr(reverse(multiple-value-list(decode-universal-time(get-universal-time)))))))
(day (nth 2 (cdddr(reverse(multiple-value-list(decode-universal-time(get-universal-time)))))))
(hour (nth 3 (cdddr(reverse(multiple-value-list(decode-universal-time(get-universal-time)))))))
(minute (nth 4 (cdddr(reverse(multiple-value-list(decode-universal-time(get-universal-time)))))))
(sec (nth 5 (cdddr(reverse(multiple-value-list(decode-universal-time(get-universal-time))))))))
(defstruct endel)
(defstruct endstr)
(defstruct strname ascii)
(defstruct str
(times (list (make-timestamp) (make-timestamp)))
name elms)
(defstruct units
(sizes '(0.001d0 1.0d-9))
strs)
(defstruct generations
(copies 3))
(defstruct endlib)
(defstruct libname ascii)
(defstruct lib
(times (list (make-timestamp) (make-timestamp)))
name elms)
(defstruct header
(version 5))
(defstruct gds
(header (make-header))
libs)
Fucntion and variable reference
[Function]
read-gds stream -> struct
[Function]
write-gds struct -> stream
Example1
(let ((e (list)))
(with-open-file
(s "link_joint_loop_smic55.gds"
:direction :input
:element-type '(unsigned-byte 8))
(setf e (read-gds s)))
(with-open-file
(s "130.gds"
:direction :output
:if-does-not-exist :create
:if-exists :supersede
:element-type '(unsigned-byte 8))
(write-gds s e)))

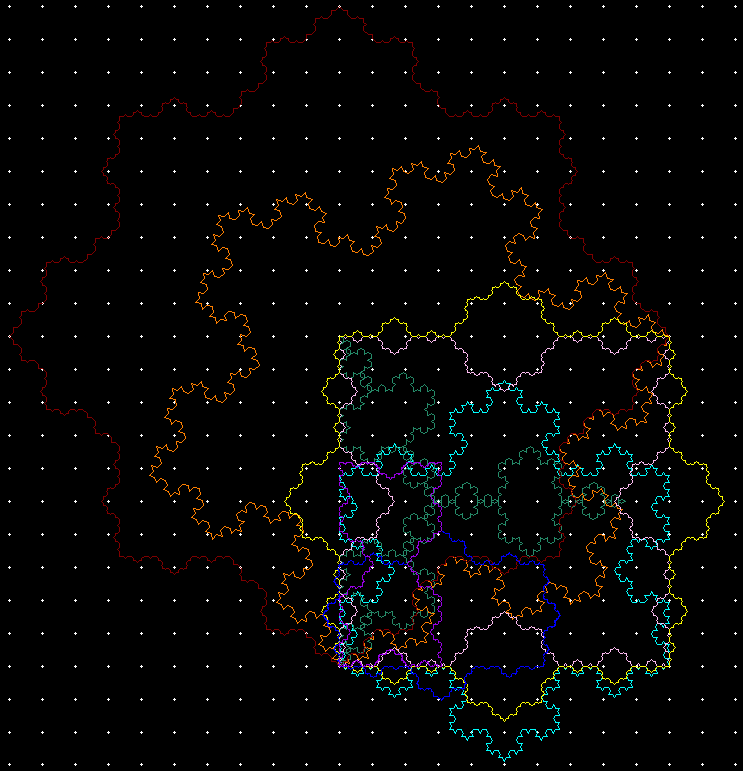

Example2
(defun chopline (line n)
(let*((l1 line)
(p0 (list (pop l1) (pop l1)))
(p1 (subseq l1 0 2))
(dx (round(float(/ (- (nth 0 p1) (nth 0 p0)) n))))
(dy (round(float(/ (- (nth 1 p1) (nth 1 p0)) n)))))
(do ((k (1- n) (1- k))
(x (- (nth 0 p1) dx) (- x dx))
(y (- (nth 1 p1) dy) (- y dy)))
((<= k 0)
(let ()
(push (nth 1 p0) l1)
(push (nth 0 p0) l1)
))
(push y l1)
(push x l1))
l1))
(defun rotate (l a)
(let*((x (- (nth 2 l) (nth 0 l)))
(y (- (nth 3 l) (nth 1 l))))
(list
(nth 0 l)
(nth 1 l)
(+ (nth 0 l) (round(float(- (* x (cos a)) (* y (sin a))))))
(+ (nth 1 l) (round(float(+ (* x (sin a)) (* y (cos a))))))
)))
(defun scale (l a)
(let*((x (- (nth 2 l) (nth 0 l)))
(y (- (nth 3 l) (nth 1 l))))
(list
(nth 0 l)
(nth 1 l)
(+ (nth 0 l) (round(float(* a x))))
(+ (nth 1 l) (round(float(* a y))))
)))
(defun chop3rotatescale (l ra sa)
(let*((l1 (chopline (subseq l 0 4) 3))
(l2 (scale (rotate (subseq l1 2 6) ra) sa))
(l3 (append (subseq l1 0 2) l2 (subseq l1 4))))
l3))
(defun chop3rotatescalelines (l ra sa)
(let ((l1 l)
(l2 (list)))
(do ((l3 (let ((p4 (list)))
(dotimes (k 4) (push (pop l1) p4))
(reverse p4))
(let ((p4 (list)))
(dotimes (k 2) (push (pop l1) p4))
(append (subseq l3 2) (reverse p4)))))
((< (length l1) 2) (append (append l2 (chop3rotatescale l3 ra sa)) l1))
(setf l2 (append l2 (chop3rotatescale l3 ra sa))))))
(defun chop3rotatescalelinesloop (l ra sa k)
(do ((r l (chop3rotatescalelines r ra sa))
(j k (- j 1)))
((< j 0) r)))
(defun move (l p)
(let ((k -1))
(map 'list
(lambda (li)
(+ li (nth (rem (incf k) 2) p)))
l)))
(let*((k 3)
(ivec1
(chop3rotatescalelinesloop
(append
(rotate '(0 0 50000 0) (* pi 1/3))
'(50000 0)
'(0 0)
)
(* pi 1/3) 1 k))
(ivec2
(chop3rotatescalelinesloop
(append
(rotate '(0 0 0 50000) (* pi -1/3))
'(0 50000)
'(0 0)
)
(* pi 1/3) 1 k))
(ivec3
(chop3rotatescalelinesloop
(append
(rotate '(0 0 50000 50000) (* pi 1/3))
'(50000 50000)
'(0 0)
)
(* pi 1/3) 1 k))
(ivec4
(chop3rotatescalelinesloop
'(0 0
50000 0
50000 50000
0 50000
0 0)
(* pi 1/4) (/ 1 (expt 2 0.5)) k))
(ivec5
(chop3rotatescalelinesloop
'(0 0
0 50000
50000 50000
50000 0
0 0)
(* pi 1/4) (/ 1 (expt 2 0.5)) k))
(ivec6
(chop3rotatescalelinesloop
'(0 0
50000 50000
0 100000
-50000 50000
0 0)
(* pi -1/4) (/ 1 (expt 2 0.5)) k))
(ivec7
(chop3rotatescalelinesloop
'(0 0
50000 0
50000 25000
0 25000
0 0)
(* pi -1/4) (/ 1 (expt 2 0.5)) k))
(ivec8
(chop3rotatescalelinesloop
'(0 0
0 50000
25000 50000
25000 0
0 0)
(* pi -1/4) (/ 1 (expt 2 0.5)) k))
(p0 '(75000 25000))
(cell1 (make-str
:name (make-strname :ascii "cell1")
:elms (list
(make-path
:layer (make-layer :i 61)
:width (make-width :i 100)
:xy (make-xy :ivec (move ivec1 p0)))
(make-path
:layer (make-layer :i 62)
:width (make-width :i 110)
:xy (make-xy :ivec (move ivec2 p0)))
(make-path
:layer (make-layer :i 63)
:width (make-width :i 120)
:xy (make-xy :ivec (move ivec3 p0)))
(make-path
:layer (make-layer :i 64)
:width (make-width :i 130)
:xy (make-xy :ivec (move ivec4 p0)))
(make-path
:layer (make-layer :i 65)
:width (make-width :i 140)
:xy (make-xy :ivec (move ivec5 p0)))
(make-path
:layer (make-layer :i 66)
:width (make-width :i 150)
:xy (make-xy :ivec (move ivec6 p0)))
(make-path
:layer (make-layer :i 67)
:width (make-width :i 160)
:xy (make-xy :ivec (move ivec7 p0)))
(make-path
:layer (make-layer :i 68)
:width (make-width :i 170)
:xy (make-xy :ivec (move ivec8 p0)))
)))
(units1 (make-units :strs (list cell1)))
(lib1 (make-lib :name (make-libname :ascii "shit") :elms (list units1)))
(gds1 (make-gds :libs (list lib1))))
(with-open-file
(s "130_2.gds"
:direction :output
:if-does-not-exist :create
:if-exists :supersede
:element-type '(unsigned-byte 8))
(write-gds s gds1)))
